SGCI – Soft Gelatine Capsule Inspection Machine Automatic Soft Gelatine Capsule Inspection Machine

The Soft Gelatine Capsule Inspection Machine – SGCI is a cutting-edge solution for pharmaceutical manufacturers, ensuring only the highest quality capsules reach consumers. Equipped with advanced sensors, high-resolution cameras, and sophisticated image-processing algorithms, SGCI meticulously inspects each capsule for defects like size irregularities, air bubbles, and improper sealing. Its automated operation classifies capsules with precision, rejecting any that don’t meet stringent quality standards. This automation enhances manufacturing efficiency, reduces the risk of costly recalls, and ensures compliance with regulatory requirements, making SGCI an indispensable tool for maintaining excellence in pharmaceutical production.

SGCI - Soft Gelatine Capsule Inspection Machine Contact us now to know more about our SGCI – Soft Gelatine Capsule Inspection Machine

Product USP

Special Features

icon

21 CFR part 11 compliant

icon

Equipped with 6 industrial vision cameras

icon

Equipped with 6 independent image processing controllers

icon

Product subjected to 360° inspection

icon

Provided with a user-friendly 21" graphical interface for teaching and simplified operation

icon

Short changeover time owing to ease of dismantling, and easy cleaning and maintenance

icon

Superlative strength and aesthetics

icon

Combi machine suitable for tablets and capsules.

icon

Equipped with 4 to 6 independent image processing controllers

icon

Product subjected to 360° inspection

icon

Provided with a user-friendly 21" graphical interface

icon

Easy to clean, operate, and maintain

icon

Accurate inspection

icon

Easily adjustable inspection sensitivity and tolerances quick and easy tool-less changeover after every batch

icon

Lowest false rejection

icon

Two vacuum drums for capsule feeding and rejection One-time camera teaching for recipe creation

icon

Record of up to 1000 recipes

icon

Defects Inspected: Shape, Bubbles, Size, Colours and Black spots/stains

Technical Data

  • Inspection product: Tablets & hard gelatine capsules
  • Inspection speed: up to 300K product/hour
  • Electrical supply: 100 – 230V single phase 50 / 60 Hz
  • Compressed air: 6 bar
  • Dimensions: 2400mm x 1100mm x 2250mm height
  • Weight: 1500 kg.
  • Construction: SS304, product contact parts in SS316 / FDA approved food-grade material

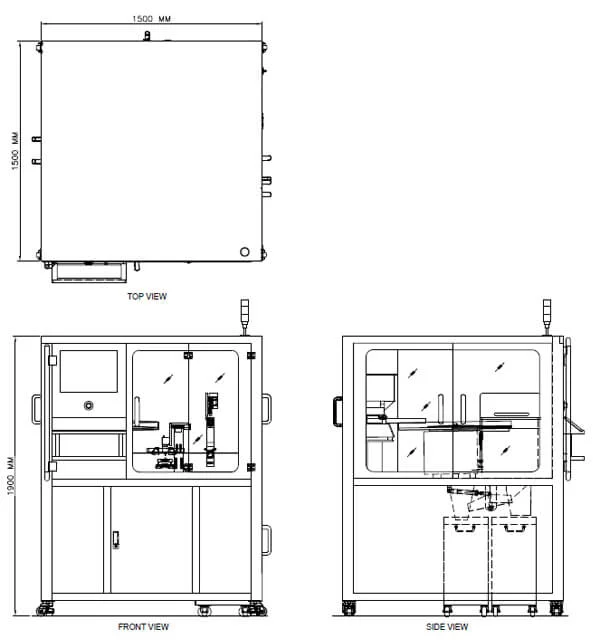

Layout
