Label Counting and Inspection Systems

STANDARD Label Counting Machine

The Accura Label Counting Machine revolutionizes pharmaceutical label counting with its high-speed capabilities, accuracy and efficiency. Designed for easy operation without requiring skilled personnel, it features preset and total counts, a printout facility for record-keeping, and compliance with cGMP norms. Its compact, sturdy structure is made entirely from high-grade stainless steel and it includes a Variable Frequency Drive (VFD) for adjustable speed control. This machine is an essential tool for enhancing productivity and accuracy in pharmaceutical manufacturing processes.

Product USP

Special Features

icon

High speed with a capacity of counting up to 1500 labels or 100mtrs. per minute.

icon

Gives preset and total count in the wound and rewound directions of the labels.

icon

Print out facility to maintain records of exact counted labels.

icon

Compliance with cGMP.

icon

Compact and sturdy structure, complete body made from SS 304.

icon

Simple controls for ease of operation.

icon

VFD to operate machine at desired speed.

Technical Data

  • Electrical Supply: 230 VAC, 50Hz, single phase
  • Motor Specification: 0.5 HP, 3 phase, 220 VAC
  • Drive: 0.5KW, Allen Bradley VFD
  • Sensor: LEUZE make fork sensor
  • Dimensions: 14000mm x 600mm x 800mm
  • Weight: 165kg

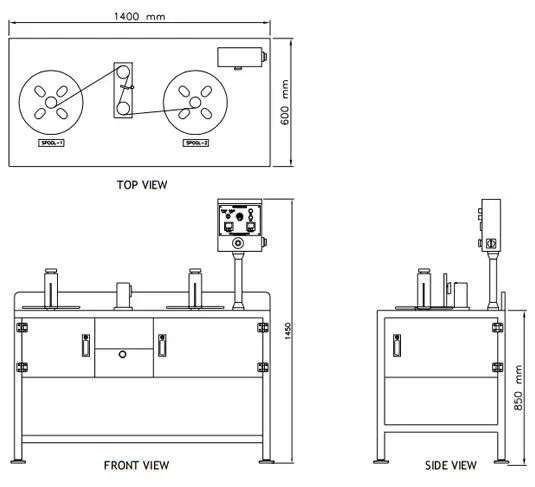

Layout
