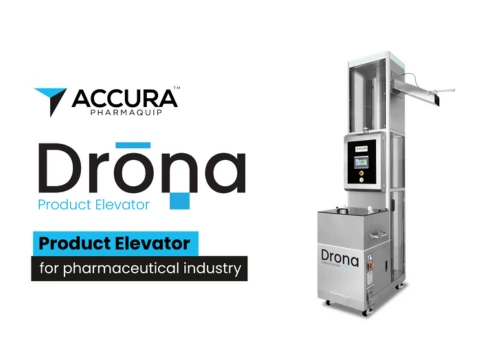

The Innovative Product Elevator Transforming the Pharmaceutical Industry. In an era where efficiency and precision are of paramount importance in the pharmaceutical sector, the newly launched, Drona – The Tablet & Capsule Elevator by Accura Pharmaquip stands out as a game-changer. This innovative product elevator redefines feeding tablets and capsules into packaging machines by automating what was once a labor-intensive task. The result is enhanced operational efficiency and a significant reduction in human error, positioning Drona: The Innovative Product Elevator for the pharmaceutical industry as an essential addition to modern pharmaceutical manufacturing.
Product USP
Since 2003, we have been the leading provider of next-generation automatic vision inspection systems for the pharmaceutical industry.

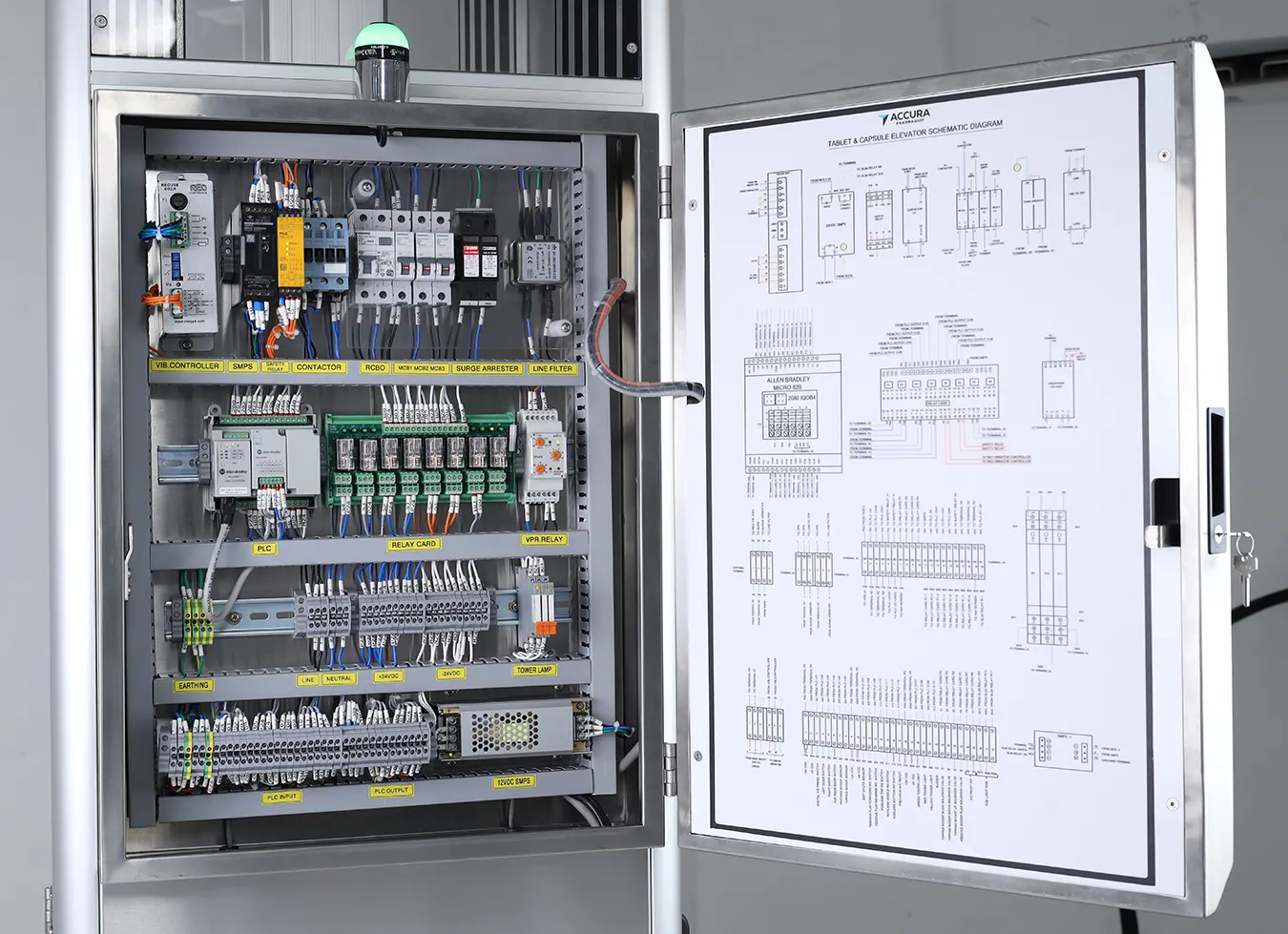

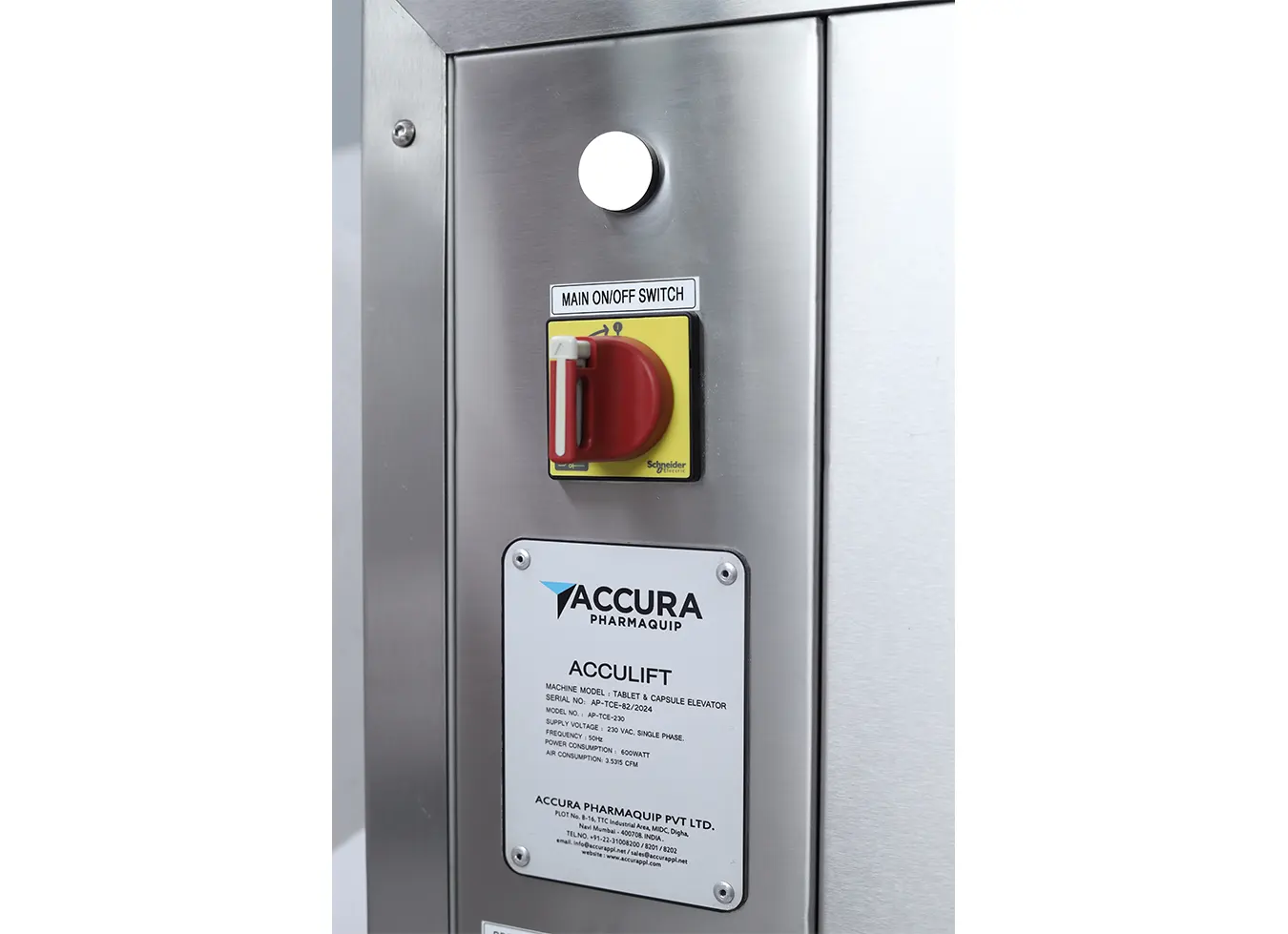

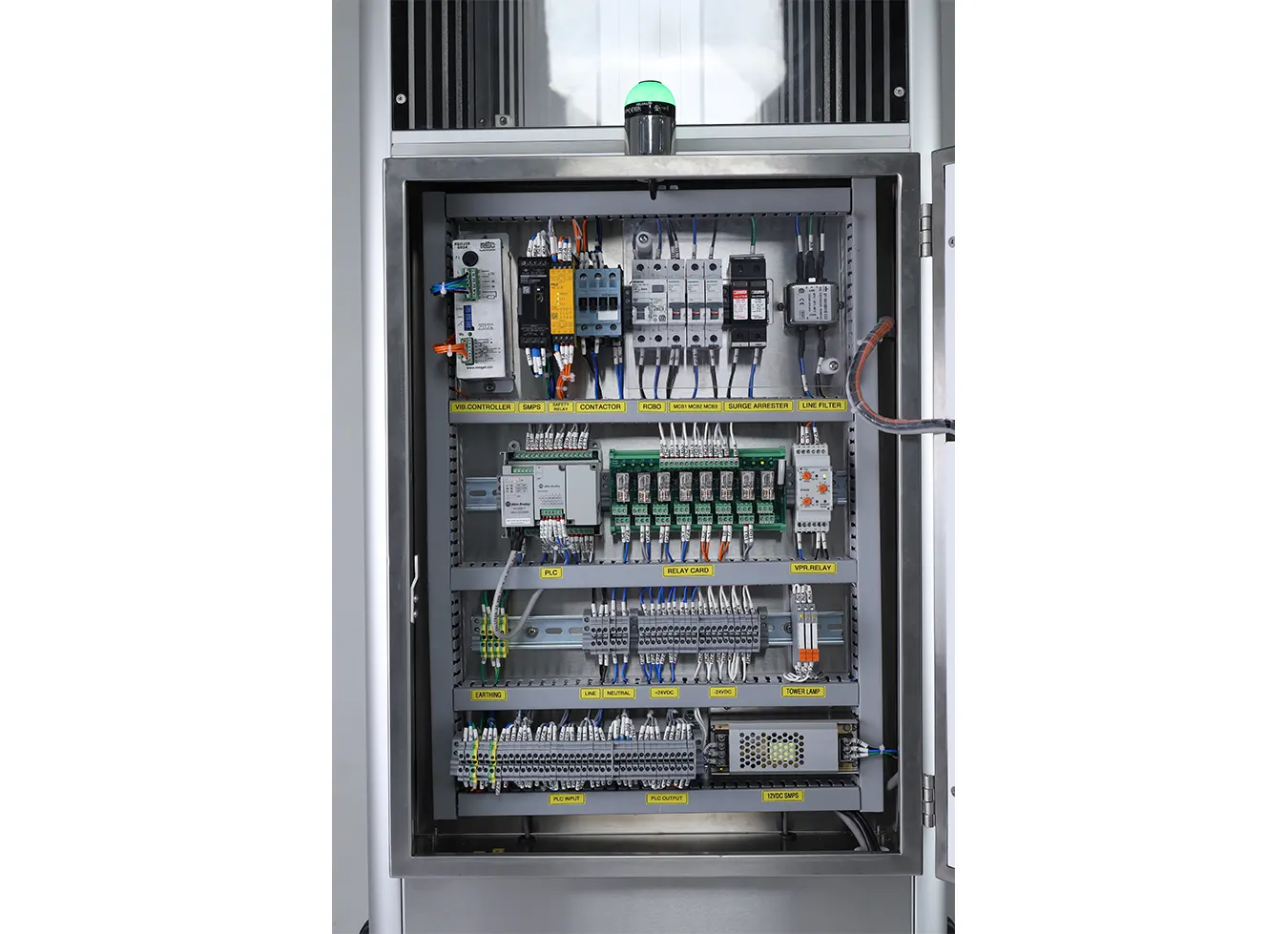

CE-certified design with all electrical safety compliances
During cleaning or batch changes, the product level sensor can be easily removed and replaced to the proper anchor.
Customizable product discharge height
Product level sensor having easy removal and replacement facility with proper anchor during cleaning/batch changeover.
Easy removal & replacement of discharge chute.
Smooth product elevation
Extra sensor for detecting the hopper level in the packing machine.

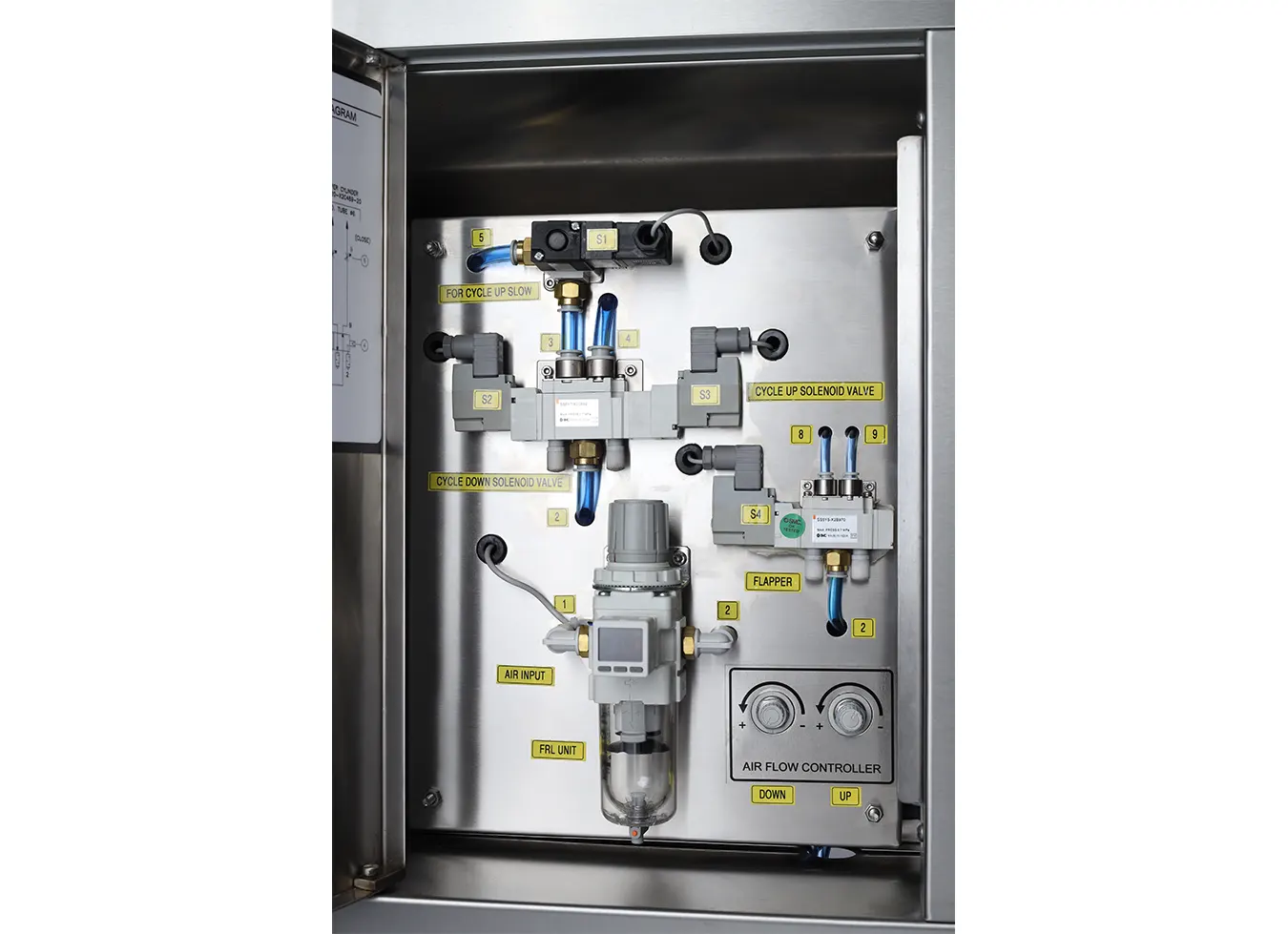

Pneumatically operated tipping scoop for delicate product & product level detection by sensor
7" HMI screen - easy to operate
Product hopper capacity 100 litres. Higher capacity is available on demand.
Easy to use; easily operable by unskilled workers.
Pneumatic scoop lift.
Vibratory feeder with suitable dust extraction points.
A single scoop of 4 to 6 litres with auto-level detection
Gentle lifting and tilting of the scoop eliminates damage to delicate products.
Fully enclosed from all sides with transparent polycarbonate guards.

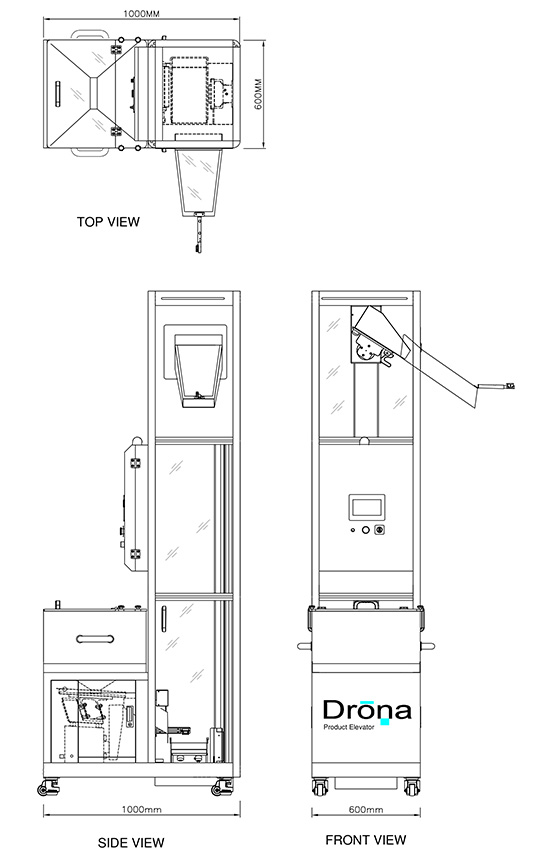

Standard tilting height of 2000 mm, other heights are available as per customer requirement.
The additional sensor is provided for the packing machine hopper's level detection and synchronization.
The required product level in the hopper of the packing machine is maintained all the time.
Double product feeding speed.
Feed capacity of 280 to 300 kg/hr.
The high-speed model product feeding discharge speed is 540 Ltr - 810 Ltr per hour.
Dual feeding discharge.
